EVACUATION DIAGRAMS

We have great software and WHS expertise to complete professional and affordable evacuation diagrams.

FIRE ZONE BLOCK PLANS

Fire Alarm Block Plans, commonly known as Zone Block Plans are required to be installed adjacent to the Fire Indicator Panel, Sub-FIP and Mimic Panels.

EVACUATION PLANS

Business owners must have an emergency procedure manual in place. Evacuation planner can provide an Evacuation plan with Evacuation diagrams to fulfill your legislative requirement.

CHEMICAL MANIFESTS

Don't get bogged down with the mountains of paper work to complete your chemical register, let us do it for you.

ARE YOU LOOKING FOR PREMIUM EVACUATION DIAGRAMS

The building owner/manager has an obligation to provide emergency diagrams to aid in the safe evacuation of the premise.

Our professional diagrams are tailored to be site and location specific and meet the Australian Standard 3745:2010  &  State Regulations including Building Fire Safety Regulations 2008 (QLD).

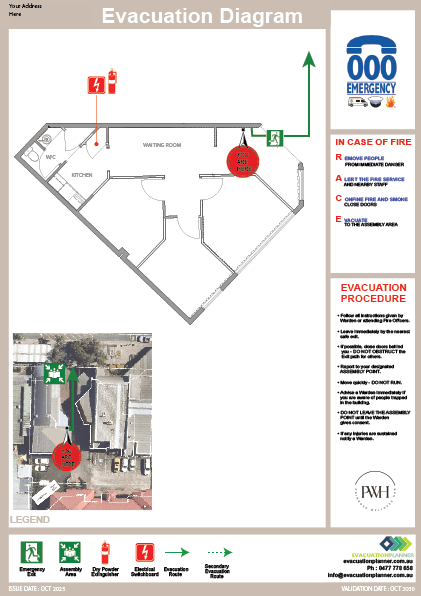

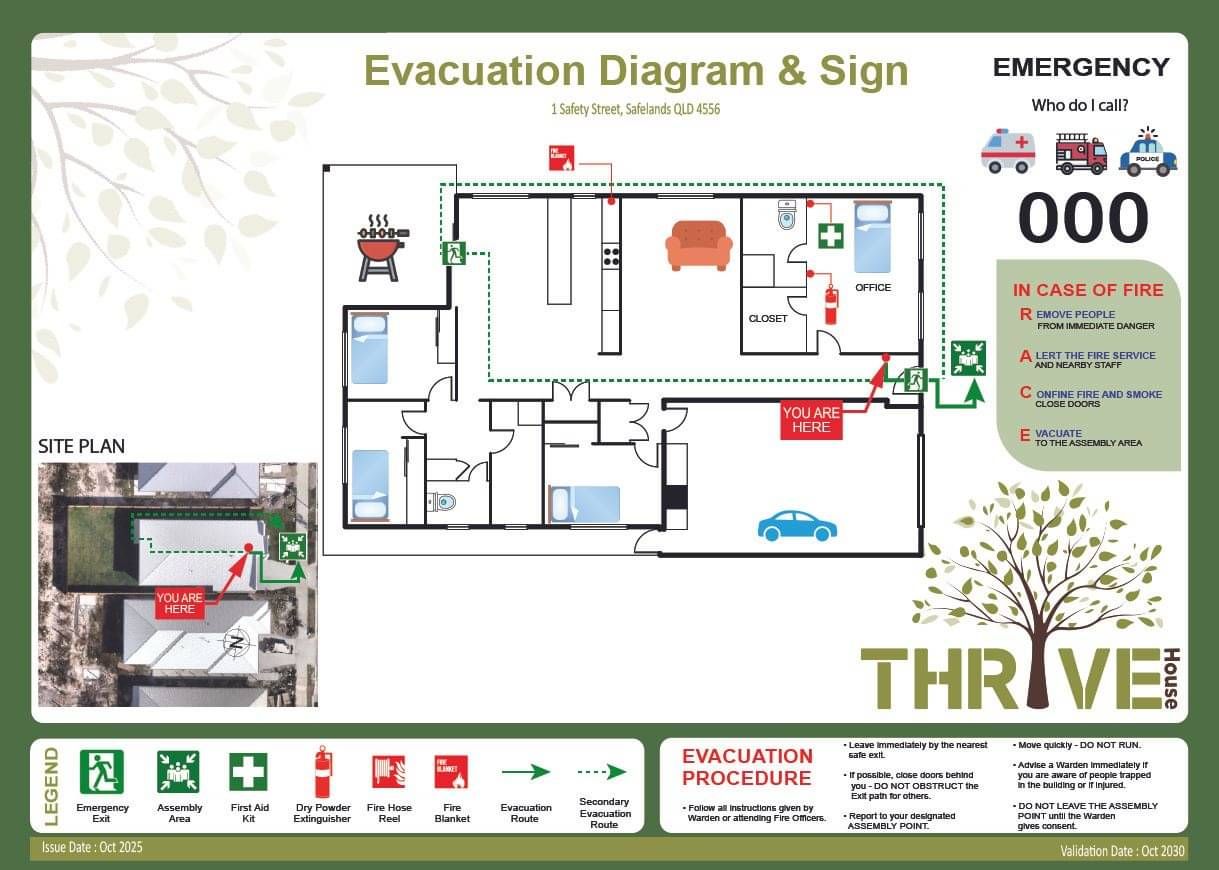

The emergency evacuation diagrams show evacuation routes, the location of firefighting appliances and other significant information.

The diagrams form an important element of your facility's safety evacuation plan. These diagrams are intended to provide clear emergency and evacuation information for occupants and visitors.

OUR TEAM

Evacuation Planner maintains a staff of professional CAD designers while the owner has over ten years' experience working in the Architecture industry in Australia and New York City where she helped design Hotels, Restaurants, offices and large scale apartment buildings before owning a WHS Management Software company and now focusing on drafting evacuation diagrams. Our qualifications include

BA Int. Architecture. UNSW, Certificate IV in Work, Health & Safety BSB41415. BNG Conserve Certified.
